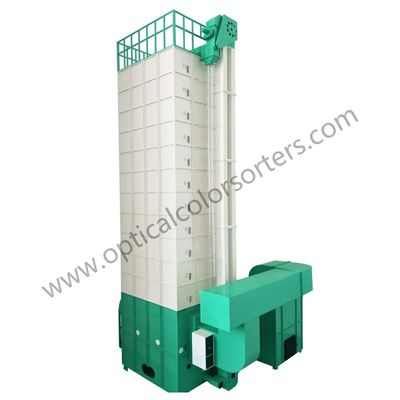

high quality rice dryer ISO certificated 30 tons maize dryer machine seller maize corn dryer
1. One machine multi-purpose, can dry rice, wheat, corn, peanuts, soybeans.Sorghum and other food crops and their seeds.
2. Forced dispersing device and quantitative feeding cycle of positive and negative grain discharge, thin layer and large air flow, uniform grain drying, high drying efficiency.
3. Low temperature drying, good quality rice, high germination rate of seeds.
4. Adopt large spiral feeder, high strength nylon dustpan, stainless steel net plate, wear-resisting, anti-deformation, durable and don't hurt grain.
5. Residual material cleaning device, easy to remove grain residual material, prevent mixing.
TECHNICAL PARAMETERS
| Product Description |
| Model |
5HPX-15 |
5HPX-20 |
5HPX-30 |
5HPX-30B |
5HPX-35 |
| Loading capacity(kg) |
Paddy |
3,000~15,000 |
3,000~20,000 |
4,000~30,000 |
4,000~30,000 |
5,000~35,000 |
| |
Corn |
3,800~18,500 |
3,800~24,600 |
5,000~36,400 |
5,000~36,400 |
6,000~42,000 |
| Dimension L*W*H (mm) |
4321*2583*10000 |
4600*3263*10500 |
4600*3260*12700 |
4600*3570*12700 |
5712*5000*12400 |
| Net Weight |
3,000 |
4,200 |
5,500 |
6,500 |
8,000 |
| Heat Source |
Biomass Furnace/Gas Burner/Diesel Burner |
| Power Consumption (kw) |
9.95 |
10.6 |
15.45 |
21.7 |
19.7 |
| Input Voltage |
3 Phase 220V/380V,50Hz |
| Husk Furnace |
Type |
Indirect |
| |
Ignition |
Manual |
| Function |
Loading |
50~60(approx) |
50~60(approx) |
60~70(approx) |
60~70(approx) |
60~70(approx) |
| |
Discharge |
50~60(approx) |
50~60(approx) |
60~70(approx) |
60~70(approx) |
60~70(approx) |
| |
Drying Rate |
0.5-1.2 %/h |
0.5-1.2 %/h |
0.6-1.2 %/h |
0.6-1.4 %/h |
0.5-1.2 %/h |
| Standard Devices |
Online moisture meter, Conveyor ,Discharge system, Buffer system, Elevator ,Suction fan, Temperature sensor |
| Safety Devices |
Overload device, Temperature control device, Control fuse, Leakage protection device, Air pressure switch |
Furnace Burner Options
| Furnace Type |
Yes/No |
| Diesel |
Yes |
| Gas |
Yes |
| Coal |
Yes |
| Biomass Material |
Yes(Husk/Wood/Straw/Etc) |
FEATURES:
1. Professional use grain dryers which are designed especially for small pack and quality rice. Bring you the highest profit and income.
2. Spreading device and rotary valves ensure seeds and grains to circulate evenly and make even drying possible
3. Use giant screw conveyor, PVC steel bucket,Galvanized steel sheet for durability use.
4. Sufficient Inspection zone and emergency unloading valve to make sure no stuck for the grains in the dryer
Drying Unit Diagram
What We Can Offer
1)Whole turnkey project solution
included Pre-cleaning machine,elevator,input&outlet pipe,furnace and dryer
2)Plant designition service
supply you all the possibly area required,the instllation diagram for consideration
3)Instllation and commisioning service
professional engineer woud guide you for the assembling and commisioning the machine
4)Full time online service
24 hours online technique service,ensure to tackle the problem immediately
5)Enormous spare parts to support
easy broken spares and wearing parts would be send timely,no worry for drying season
Applicantion:
